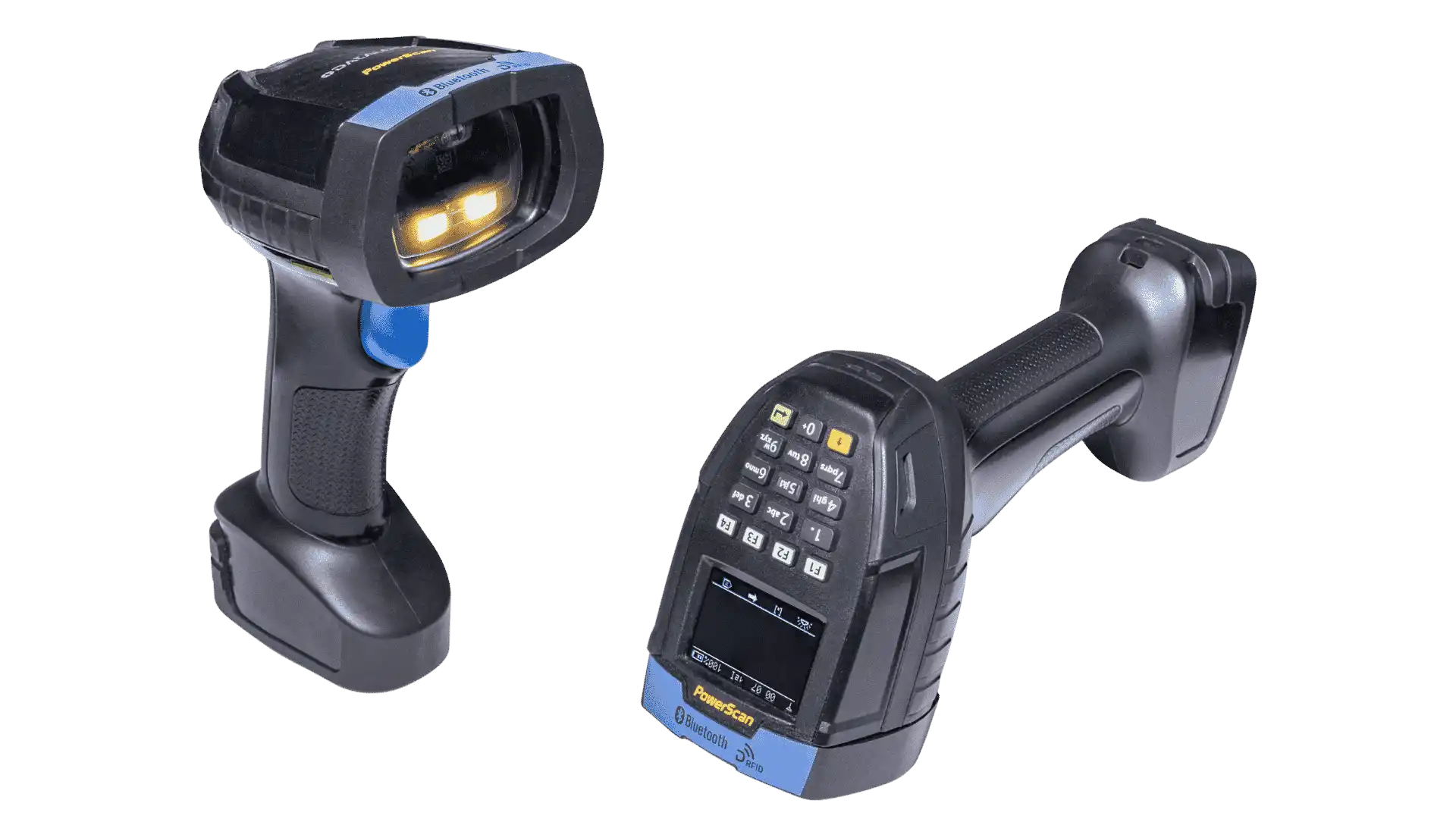

Datalogic PowerScan 9600 RFID Series Hybrid RFID and Barcode Scanner

Brand - Datalogic

The Datalogic PowerScan 9600 RFID Series is an ultra-rugged hybrid handheld scanner family designed for businesses that use both UHF RFID tags and printed barcodes in their identification workflows. It combines RFID reading and writing capabilities with 1D, stacked, 2D, postal code, Digimarc, OCR and image capture functionality in a single industrial handheld device. The PowerScan 9600 RFID Series is built for organizations that need stronger traceability, faster inventory workflows and improved item visibility. It is suitable for retail, transport and logistics, manufacturing and healthcare environments where RFID and barcode technologies may coexist. A key advantage of the PowerScan 9600 RFID Series is its hybrid identification capability. Operators can read and write UHF RFID tags while also scanning printed barcodes with the same device. This reduces the need to switch between separate RFID readers and barcode scanners, improving productivity in daily operations. The RFID system supports EPC UHF Class 1 Gen 2 / ISO 18000-6C. Frequency ranges are listed as 902–928 MHz for the US and 865–868 MHz for the EU. Modulation is ASK, with configurable output power up to 20 dBm. Linear RFID reading range is up to 1 m / 3.2 ft. Barcode reading capability is also broad. The scanner auto-discriminates standard 1D linear codes including GS1 DataBar linear codes. It also supports 2D codes such as Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code and Dot Code. Postal codes, stacked codes and Digimarc Barcodes are also supported. The PowerScan 9600 RFID Series is available as a cordless Bluetooth solution. It uses Bluetooth 5.2 certified wireless technology at 2.4 GHz, with Class 1, Class 2 and Class 3 options. Supported profiles include SPP and HID. Security features include data encryption and scanner authentication. Open-air radio range is up to 100 m / 328 ft when measured using the base station. Wireless charging is one of the important operational advantages of the series. Datalogic’s inductive Wireless Charging System eliminates exposed battery contacts and pins, which can become dirty, deformed or damaged over time. This removes a common point of failure in industrial and retail environments and can help reduce total cost of ownership. The scanner uses a 3350 mAh lithium-ion battery. Charge time at 12 VDC is 2.5 hours to 95% and 3.2 hours to 100% using external power. The device supports up to 80,000 barcode reads per charge and up to 40,000 RFID-only reads per charge. The BC9600 base / charger uses a modular design and supports multiple interface plug-ins. Available communication options include RS-232, USB, standard Ethernet and industrial Ethernet protocols. This makes the system easier to integrate into different enterprise, warehouse, industrial and retail infrastructures. The PowerScan 9600 RFID Series is designed for harsh environments. It offers IP67 and IP65 sealing, while the cradle is rated IP65 on specific models. The scanner withstands 50 drops from 2.5 m / 8.2 ft at 20°C and 50 drops from 2.0 m / 6.6 ft at -20°C. The trigger is rated for 10 million hits, and ESD air discharge protection is 20 kV. The ergonomic center-of-gravity design helps reduce operator stress during daily scanning tasks. The scanner is designed for intensive use in retail inventory, logistics, warehouse, manufacturing and healthcare workflows where repeated scanning or RFID reading is part of the process. The physical design is rugged and compact for an industrial RFID handheld. Available colors are black and blue. Dimensions are 19.8 x 15.0 x 7.9 cm. The PBT9600-SRRF model weighs 415 g, while the PBT9600-DKDCRF model weighs 455 g. The PBT9600-DKDCRF version includes a 1.8-inch OLED graphic display and a configurable 16-key keyboard. Barcode reading performance depends on model configuration. The SR model uses a 1280 x 800 pixel imager sensor. The DC model uses dual 1280 x 800 pixel sensors with a color sensor. Aiming is supported by a 630–680 nm visible laser diode, and illumination uses white LED reading light. The scanner supports 15% minimum print contrast, pitch +/- 52°, roll 360° and skew +/- 52°. Field of view is 38° horizontal and 24° vertical. Maximum barcode resolution is 3 mils for 1D codes and 6 mils for 2D codes. Typical barcode reading ranges include Code 128 5 mils from 6.4 to 30.9 cm, Code 128 20 mils from 4 to 103.7 cm, Code 128 40 mils from 5.5 to 175 cm, EAN / UPC 13 mils from 4 to 67.5 cm and Data Matrix 10 mils from 6 to 30 cm. Actual performance depends on label size, print quality, contrast, ambient light and scan angle. Good-read feedback is designed for industrial and retail productivity. The scanner includes an adjustable beeper, Datalogic 3GL / Three Green Lights good-read feedback, Datalogic Green Spot, dual Good Read LEDs and vibration feedback. Typical retail applications include checkout, self-checkout and inventory management. In transport and logistics, the series fits receiving, picking, inbound, outbound, order fulfillment and warehousing. In manufacturing, it supports work in progress, traceability and quality control. In healthcare, it can support inventory management, traceability and validation workflows. Configuration and deployment are supported by Datalogic Aladdin, available at no charge. OPOS and JavaPOS utilities are also available. The standard factory warranty is 3 years. Overall, the Datalogic PowerScan 9600 RFID Series is a strong hybrid RFID and barcode scanner for organizations that need one rugged handheld device for UHF RFID and barcode-based identification. Its strongest value lies in UHF RFID read / write capability, 1D / 2D barcode scanning, Digimarc support, image capture, Bluetooth 5.2 connectivity, wireless charging, modular BC9600 integration, IP65 / IP67 protection, balanced ergonomics, long battery life and industrial durability.

Datasheet

Product Identifiers
