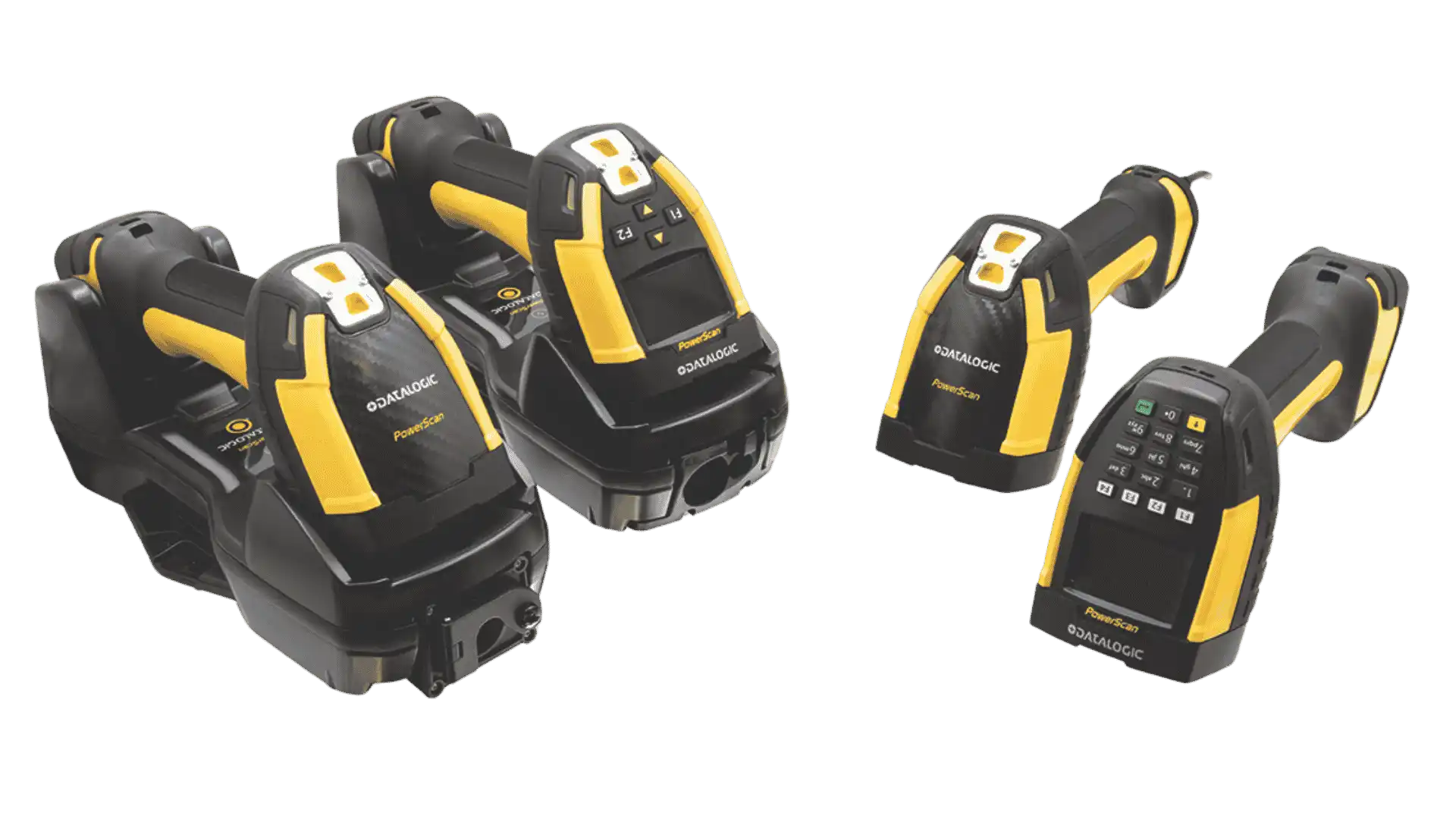

Datalogic PowerScan 9600 Auto Range Series Industrial Handheld Scanners

Brand - Datalogic

The Datalogic PowerScan 9600 Auto Range Series is an ultra-rugged industrial handheld scanner family designed for demanding warehouse, logistics and manufacturing environments. It combines auto range optics, extra-long reading distance, 1D / 2D decoding, strong durability and flexible corded or cordless connectivity. The PowerScan 9600 Auto Range Series is built for applications where operators need to scan both nearby barcodes and very distant rack labels with the same device. Its auto range optics support reading from contact distance up to more than 20 m / 65 ft, making it especially suitable for high-bay warehouses, logistics centers and industrial storage areas. A key strength of the PowerScan 9600 AR is its fast 1D / 2D autofocus scan engine. Operators can move from scanning a pick list at a short distance to scanning the highest barcode on a warehouse rack without changing scanner or workflow. This flexibility is valuable in shipping, receiving, order fulfillment, picking, put-away, inbound, outbound and material handling operations. The scanner is designed to perform even in difficult scanning conditions. The source highlights strong performance on damaged barcodes and when aiming through shrink wrap. This makes the PowerScan 9600 Auto Range relevant for real warehouse and production environments where labels may be worn, distorted, covered, reflective or placed far away. The PowerScan 9600 Auto Range Series is available in corded, cordless Bluetooth and cordless STAR configurations. The PD9630-AR is the corded model direction, while PBT9600-AR and PM9600-AR provide cordless operation. A PM9600-DKAR version is also listed with a high-visibility 1.8-inch OLED display and configurable 16-key keypad. The cordless models support two wireless communication options. The Bluetooth version uses Bluetooth 5.0 with Class 1, Class 2 and Class 3 operation, SPP and HID profiles, data encryption and scanner authentication. Open-air radio range from the base station is up to 100 m / 328 ft. The STAR Cordless version uses Datalogic’s proprietary STAR Cordless System at 433 MHz. It supports point-to-point and multi-point configurations, two-way communication and up to 16 readers per radio receiver. Open-air range is 150 m / 492 ft at low speed and 100 m / 328 ft at high speed. The PowerScan 9600 cordless models use Datalogic’s Wireless Charging System. Based on inductive charging technology, the system removes the need for exposed battery contacts and pins, which can become dirty, bent or damaged over time. This helps reduce a common point of failure in industrial environments and can lower total cost of ownership. Cordless models use a 3350 mAh lithium-ion battery and support more than 80,000 reads per charge. Charging time at 12 VDC is 2.5 hours up to 95% and 3.2 hours for a full 100% charge using external power. This supports more than one shift of intensive scanning. The BC9600 base / charger has a modular design and supports multiple interface plug-ins. Available communication options include RS-232, USB, standard Ethernet and industrial Ethernet protocols. This modularity allows the scanner to be adapted to different host systems and industrial communication requirements. Durability is one of the strongest features of the PowerScan 9600 Auto Range Series. The scanner withstands 50 drops from 2.5 m / 8.2 ft at 20°C and 50 drops from 2.0 m / 6.6 ft at -20°C. It is rated for 10 million trigger hits and offers 20 kV ESD air discharge protection. The sealing rating is listed as IP67 and IP65, with the cradle rated IP65 on specific models. This means the series is designed for demanding industrial environments with dust, moisture and rough handling. Operating temperature is -30 to 50°C for corded models and -20 to 50°C for cordless models. The PowerScan 9600 AR uses a balanced center-of-gravity design. This helps reduce operator stress during daily scanning activities and supports more comfortable use during long shifts. The corded models measure 19.0 x 14.0 x 7.9 cm and weigh 320 g, while cordless models measure 19.7 x 14.9 x 7.9 cm and weigh 445 g. The PM9600-DKAR display and keypad model weighs 480 g. The scanner uses a 1280 x 800 pixel imager sensor. Aiming is provided by a 650 nm visible laser diode, while barcode reading illumination uses red LED light. The aiming system is designed to remain highly visible even in daylight conditions, helping operators target close and far barcodes accurately. Reading performance is optimized for long-distance industrial use. The scanner supports 1D resolution down to 2.5 mils and 2D resolution down to 5 mils, with 20% minimum print contrast. Reading angles include pitch +/- 60°, roll 360° and skew +/- 60°. Typical reading ranges show the strength of the Auto Range optics. Code 39 3 mil codes can be read up to 95 cm. Code 39 20 mil codes can be read up to 600 cm. EAN / UPC 13 mil codes can be read up to 320 cm. Code 128 40 mil codes can be read up to 1000 cm, while Code 128 100 mil codes can be read up to 2000 cm. Data Matrix 100 mil codes can also be read up to 1000 cm, depending on label quality, contrast, ambient light and scan angle. The PowerScan 9600 AR reads standard 1D linear codes, including GS1 DataBar linear codes. It also supports 2D codes such as Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code and Dot Code. Postal codes and stacked codes are also supported, including PDF417, MicroPDF417, MacroPDF, GS1 DataBar composites and UPC A / E composites. Good-read feedback is designed for industrial use. The scanner provides adjustable beeper tone and volume, dual Good Read LEDs and vibration feedback. This combination helps operators confirm successful scans even in noisy or visually busy warehouse environments. Typical applications include warehouse and logistics centers, shipping and receiving, inbound and outbound flows, parcel preparation, order fulfillment, picking, put-away, manufacturing shop floor, intralogistics, work-in-progress, traceability, inventory and material handling. Configuration and deployment are supported by Datalogic Aladdin, available at no charge. OPOS and JavaPOS utilities are also available. The standard factory warranty is 3 years. Overall, the Datalogic PowerScan 9600 Auto Range Series is a high-end industrial handheld scanner family for operations that need rugged durability, long-range 1D / 2D scanning, flexible communication and reliable cordless operation. Its strongest value lies in Auto Range optics from contact to 20+ m, ultra-rugged construction, balanced ergonomics, highly visible aiming, wireless charging, modular cradle design, Bluetooth or STAR cordless options, OLED display / keypad configuration and strong performance on damaged or shrink-wrapped barcodes.

Datasheet

Product Identifiers
