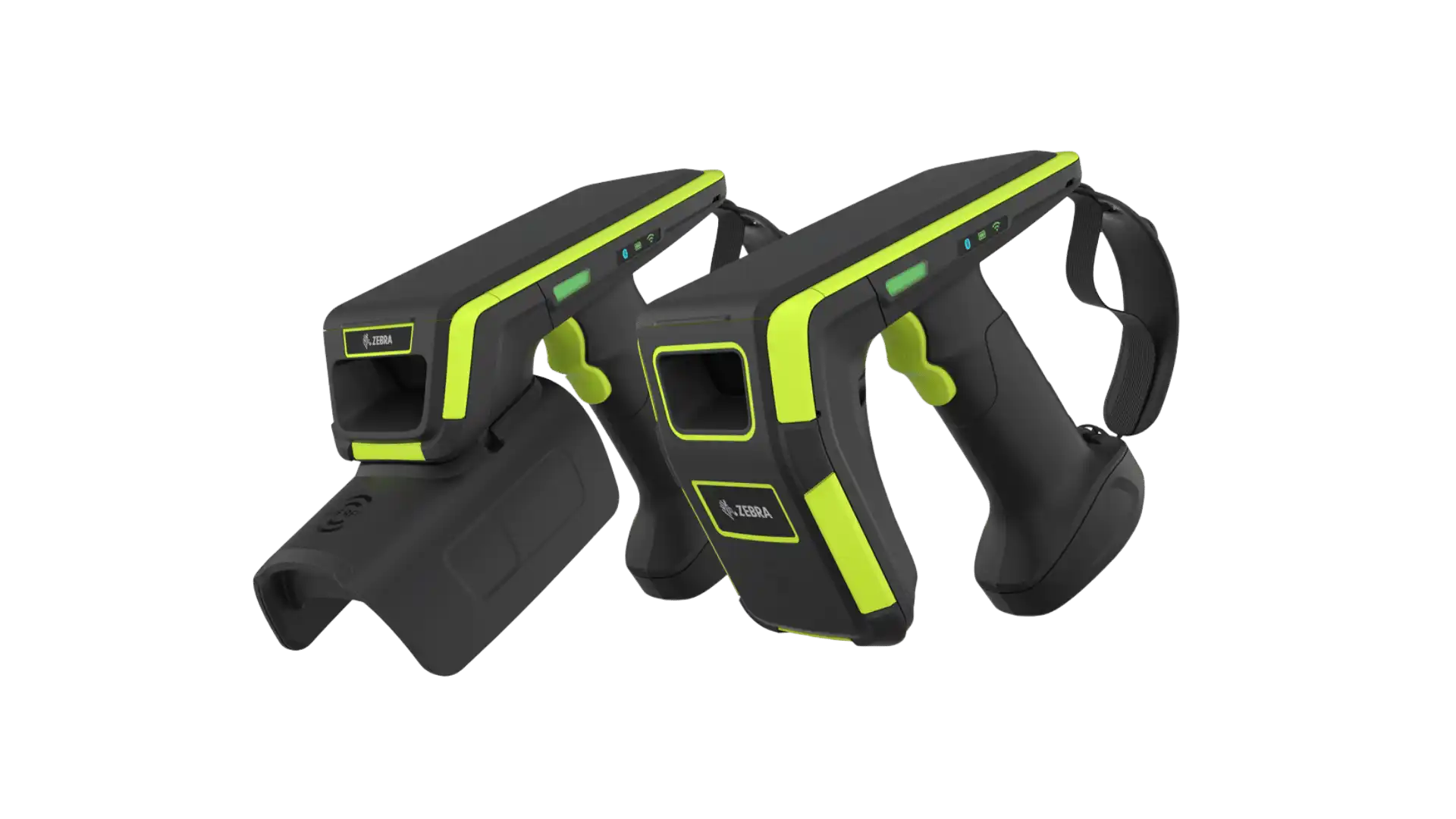

Zebra RFD90 Ultra-Rugged UHF RFID Sleds

The Zebra RFD90 Ultra-Rugged UHF RFID Sleds are high-performance RFID expansion devices designed for demanding transportation, logistics, manufacturing, government and industrial workflows. They are built for organizations that need fast and reliable UHF RFID reading in harsh environments, where standard RFID readers may not provide enough durability, range or deployment flexibility. The RFD90 family includes two main models: the RFD9030 standard-range sled and the RFD9090 long-range sled. Both models deliver an industry-leading RFID read rate of more than 1,300 tags per second. The RFD9030 provides a nominal read range of 40 ft / 12 m, while the RFD9090 extends the nominal range to 95 ft / 29 m. This makes the RFD90 family suitable for rapid cycle counting, asset tracking, item locating, baggage tracking, returnable transport object tracking, raw material inventory, work-in-progress tracking and chain-of-custody workflows. The RFD90 is not a standalone mobile computer. It is an RFID sled designed to work with a host device, such as a compatible Zebra mobile computer, Zebra tablet, third-party smartphone, third-party tablet or Windows-based PC. Zebra eConnex adaptors support direct mounting with selected rugged Zebra mobile computers, while Bluetooth 5.3 allows connection to many Android, iOS and Windows devices. The OtterBox uniVERSE adaptor expands support for third-party smartphones. Connectivity is one of the strongest advantages of the RFD90 family. Host connection options include electronic 8-pin eConnex, Bluetooth 5.3 and USB cable cup. Pairing can be handled through NFC tap-to-pair, camera-based pairing and Scan-To-Connect. This flexibility allows the same RFID sled platform to fit different device fleets, including rugged Zebra devices and selected third-party smartphones. The RFD90 family is designed for ultra-rugged environments. Both sleds are tested for multiple 6 ft / 1.8 m drops to concrete and 500 tumble cycles, equivalent to 1,000 drops from 0.5 m at room temperature. They carry dual IP65 and IP67 sealing, providing protection against spray and submersion according to the specified ratings. The operating temperature range is -20°C to +55°C, with storage from -40°C to +70°C. This makes the RFD90 appropriate for loading docks, warehouses, yards, industrial areas, cold chain operations and other harsh environments. RFID performance is based on Zebra proprietary radio technology and support for EPC Class 1 Gen 2 and EPC Gen2 V2 standards. The RFD9030 supports regional frequency ranges including US 902–928 MHz, EU 865–868 MHz and Japan 916–921 MHz with LBT, with RF output up to 30 dBm EIRP. The RFD9090 supports the same regional bands but with higher listed RF output ranges, up to 35.5 dBm EIRP depending on region. Regional configuration should always be matched to the deployment country and local regulatory requirements. The RFD90 also includes an ultra-accurate item-finder mode. This helps workers locate a specific tagged item instead of simply reading all tags in the surrounding area. In practical use, this can support finding baggage, assets, tools, returnable containers, raw materials, kits, parts, critical inventory or other tagged objects in dense environments. The tri-function user-programmable trigger improves workflow speed. It gives workers quick access to RFID reading, barcode scanning through the attached host device or sled imager configuration, and a third programmable function based on the workflow. This allows users to complete RFID and data capture tasks without unnecessary screen interaction. The RFD90 can be configured with barcode imager options. The SE4750MR standard range imager has a 1280 × 960 pixel sensor, 31° horizontal and 23° vertical field of view, ±60° skew and pitch tolerance, 360° roll tolerance, 655 nm laser aiming and two warm white illumination LEDs. The SE4850 extended range imager has a 1280 × 800 pixel sensor, near and far fields of view, 655 nm laser aiming, hyper red illumination and a minimum print contrast of 25%. These options allow the RFD90 platform to support both RFID and barcode workflows depending on configuration. Power is supplied by a quick-release 7,000 mAh PowerPrecision+ lithium-ion battery. This battery capacity supports long RFID work sessions, while the quick-release design helps reduce downtime when batteries need to be swapped. User notifications include Bluetooth status LED, Wi-Fi status LED, decode LEDs, battery status LED and beeper. Charging is designed to support mixed deployments. RFD90 cradle solutions can charge the sled alone, the mobile computer alone or the sled and mobile computer together when attached. A universal cradle cup can charge the sled and provides a USB-A port for charging third-party devices. One-slot and multi-slot cradles are available, including charge-only and communication variants. Remote management is another important RFD90 advantage. Built-in Wi-Fi 6 allows over-the-air device management even when no mobile computer or smartphone is attached to the sled. Ethernet communication cradles and management through an attached host device also support device configuration, firmware updates and health monitoring. This reduces the need to physically handle each unit during updates or fleet management. The RFD90 can also operate as a tethered RFID reader. By connecting the sled to a Windows-based PC or other host through a cable cup, organizations can use it for workstation-based RFID tasks, demos, proof-of-concept work, configuration, testing and firmware updates. Zebra’s development and configuration tools help simplify deployment. RFD90 SDKs are based on current Zebra RFID handheld SDKs, so existing applications may only require recompilation with the new SDK rather than a major rewrite. 123RFID Mobile and 123RFID Desktop can be used to configure the sled live or offline through Bluetooth or cable cup, perform proofs of concept, run demos and manage firmware upgrades. The RFD90 family is also designed to protect long-term investment. Tool-free sled adaptors allow mobile computers or smartphone adaptors to be changed without sending devices to IT for retrofitting. Interchangeable cradles are designed so mobile computers can be swapped with minimal effort, using a coin screw instead of complex wire harness changes. The RFD9030 measures 7.4 x 3.2 x 6.8 in / 189 x 83.4 x 173 mm. The RFD9090 measures 9.8 x 3.8 x 6.8 in / 248 x 96.3 x 173 mm. Weight depends on model and imager configuration: the RFD9030 is listed at 714 g with SE4750MR and 751 g with SE4850, while the RFD9090 is listed at 759 g with SE4750MR and 799 g with SE4850. Typical transportation and logistics applications include baggage tracking, cycle counting, item locating, cold chain and returnable transport object tracking. Manufacturing applications include work-in-progress tracking, raw materials inventory, pipeline and utility tracking, item locating and RTO tracking. Government applications include kitting, asset tracking, item locating, chain of custody and personnel control. Overall, the Zebra RFD90 Ultra-Rugged UHF RFID Sleds are premium RFID sleds for demanding environments where durability, long read range, high tag throughput and flexible host connectivity are critical. The RFD9030 is the right fit for standard-range RFID workflows up to 12 m, while the RFD9090 is the stronger choice when extended-range reading up to 29 m is required. Their strongest value lies in 1,300+ tags-per-second performance, ultra-rugged IP65 / IP67 design, 1.8 m drop specification, Wi-Fi 6 remote management, Bluetooth 5.3 host flexibility, eConnex support, 7,000 mAh battery, item-finder mode and enterprise-ready Zebra RFID ecosystem.

Datasheet

Product Identifiers
