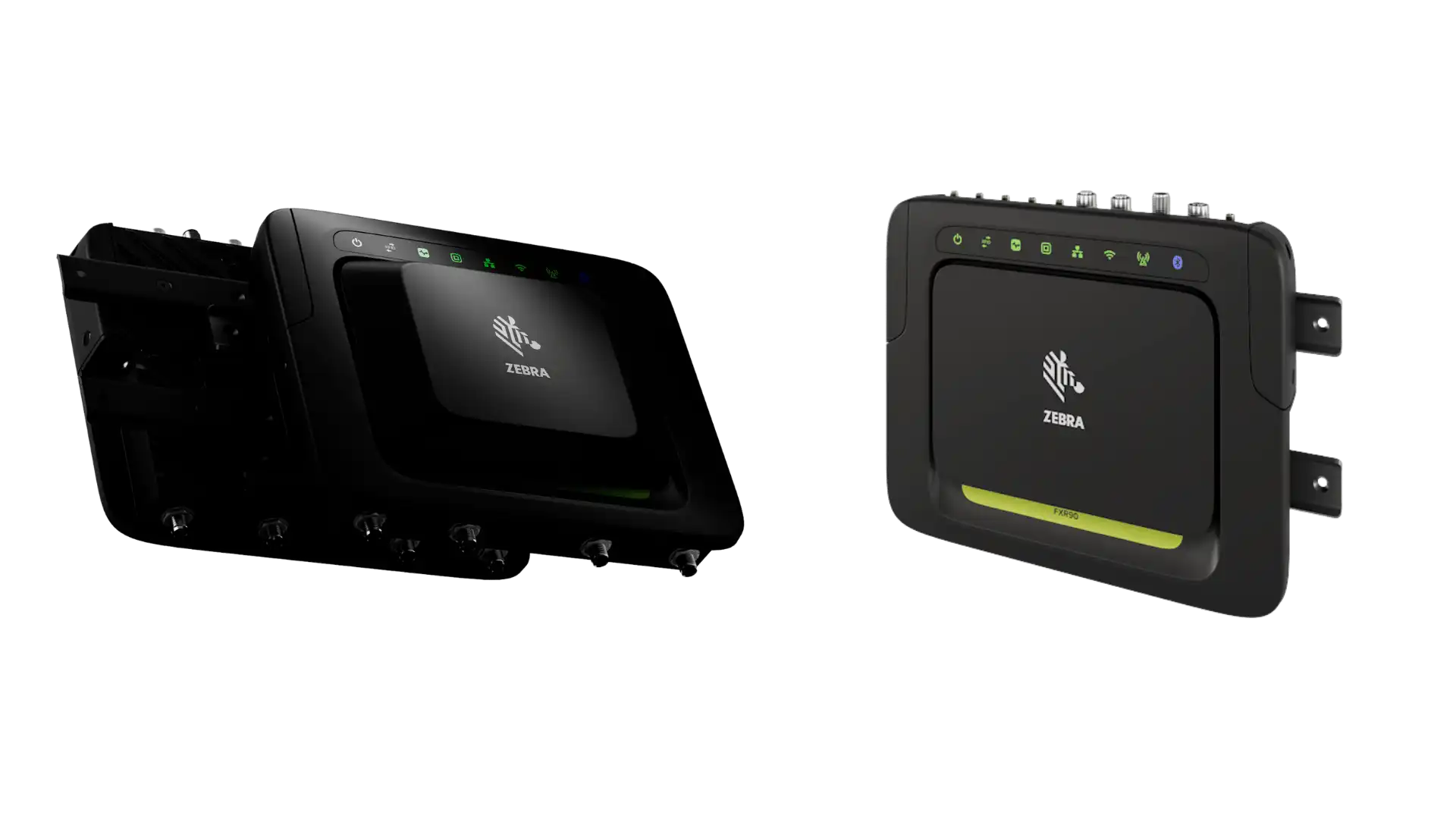

Zebra FXR90 Ultra-Rugged Fixed RFID Readers

Brand - Zebra

The Zebra FXR90 Ultra-Rugged Fixed RFID Reader family is designed for fixed RFID infrastructure in demanding transportation, logistics, warehousing, manufacturing and government environments. It is built for operations that need reliable RFID visibility in places where moisture, dust, wash-down processes, outdoor exposure, vibration, temperature extremes and hard-to-wire locations can make standard fixed readers difficult to deploy. The FXR90 is not a handheld RFID reader and not an RFID sled. It is a fixed reader platform for permanent or semi-permanent installation at dock doors, portals, production areas, outdoor yards, vehicle-related locations, material flow points and other RFID read zones. Its purpose is to provide automatic RFID data capture without requiring workers to manually scan every item. A key strength of the FXR90 is its ultra-rugged construction. The reader is sealed to dual IP65 and IP67 ratings, making it suitable for dusty, wet and harsh operating environments. It operates from -40°C to +65°C and supports storage from -40°C to +70°C. The source also lists vibration support to MIL-STD-810 Method 514, altitude support to MIL-STD-810 Method 500, solar radiation testing, salt fog testing and ESD protection of ±15 kV air discharge and ±8 kV direct / indirect discharge. RFID performance is enterprise-grade. The FXR90 uses Zebra Proprietary Radio Technology and supports ISO 18000-6C / EPC Class 1 Gen2V2. The maximum RFID read rate is listed at 1,300+ tags per second, making it suitable for high-throughput environments where many tagged assets, containers, returnable transport objects, materials or goods may move through a read zone. The FXR90 can be deployed with integrated antenna or external antenna configurations. Available antenna port configurations include an integrated antenna with four external antenna ports, four external RP-TNC antenna ports or eight external RP-TNC antenna ports. This gives system designers flexibility to build simple reader zones or more complex multi-antenna RFID installations. The integrated antenna model provides streamlined deployment because the reader and RFID antenna are contained in one unit. The source lists an integrated antenna gain of 7 dBi and beamwidth of 72°. The nominal RFID read range with the integrated antenna is 55 ft / 16.7 m, while the maximum listed integrated antenna read range is 100 ft / 30.5 m with a specific tag and setup. The nominal RFID write / encode range with the integrated antenna is 15 ft / 4.5 m. Receiver sensitivity is another important strength. The FXR90 lists maximum receiver sensitivity of -92 dBm, supporting reliable tag capture in challenging read environments. The source also highlights rugged sealed M12 connectors and increased accuracy in harsh conditions. Wireless connectivity is a major differentiator. The FXR90 includes Wi-Fi 6, Bluetooth 5.3, 5G, GPS and CBRS support, allowing it to be deployed in places where Ethernet cabling is difficult or impractical. This is especially useful for outdoor areas, remote facilities, yards, temporary or hard-to-wire zones and operations that want to use private wireless networks. Wi-Fi support includes IEEE 802.11ax/ac/a/b/g/n with 2x2 MU-MIMO, IPv4 and data rates up to 1.2 Gbps on 5 GHz and 458 Mbps on 2.4 GHz. Bluetooth 5.3 Class 1 with BLE supports pairing through SSP and NFC tap-to-pair. WWAN support includes 5G FR1 bands, 4G, 3G and GPS / GLONASS / BDS / Galileo / QZSS / GNSS positioning. GPS data can help organizations understand where in the physical world items are being read, tying read events back to a customer, facility, yard, area or operational zone. CBRS support allows the reader to connect to a private network with broader wireless coverage and low latency, where applicable. The FXR90 is designed for simplified deployment and management. A mobile-friendly web interface allows installers to configure reader settings and monitor reader health. The interface is operating-system agnostic, which helps technicians work more flexibly from different devices. The reader also supports Zebra IoT Connector, which allows cloud-capable edge devices to share data through standard IoT protocols with no coding required. This can help organizations gather RFID event data consistently and use it for real-time decision-making. Power options are flexible. The FXR90 can be powered directly from 12 VDC to 24 VDC via flying leads, Zebra AC / DC IP67 sealed power supply, Zebra indoor AC / DC power supply, Zebra DC / DC IP67 sealed power supply, PoE+ injector or PoE injector. This makes it suitable for indoor fixed infrastructure, wet and dusty environments, outdoor locations and vehicle-powered deployments. Connectivity includes Gigabit Ethernet, WLAN, WPAN, WWAN 5G and CBRS. Network services include DHCP, HTTPS, FTPS, SFTP, SSH, HTTP, FTP, SNMP and NTP. The reader supports IPv4 and IPv6, TLS security and FIPS 140-2. Communications include two USB host ports and one USB client port. GPIO includes four inputs and four outputs, supporting integration with industrial controls, sensors, lights, alarms or automation systems. The FXR90 runs Linux on an NXP iMX8 Mini Quad Cortex-A53 CPU, with 2 GB LPDDR4 RAM and 16 GB eMMC flash. Cryptography support includes TLS 1.2 and 1.3 and FIPS 140-2. Visual status indicators include power, activity, status, application, Ethernet, Bluetooth, Wi-Fi and cellular indicators. The physical design is available with or without integrated RFID antenna. Without integrated antenna and with flush mount brackets, the reader measures 13.2 x 10.0 x 2.2 in / 33.5 x 25.4 x 5.5 cm. With integrated RFID antenna and flush mount brackets, it measures 13.2 x 10.0 x 2.9 in / 33.5 x 25.4 x 7.38 cm. Weight ranges from 2.50 kg for the reader without flush mount bracket to 3.07 kg for the integrated antenna model with flush mount bracket. Mounting options include flush mount and VESA mounting. The articulating VESA mount supports different pole sizes and can be mounted to larger poles using hose clamps, making the FXR90 flexible for portals, walls, poles, vehicles, outdoor structures and industrial mounting points. Typical transportation and logistics applications include baggage tracking, cycle counting, item locating, cold chain and returnable transport object tracking. Manufacturing applications include work-in-process tracking, raw materials inventory, pipeline / utility tracking, RTO tracking and manufacturing automation. Government applications include kitting, asset tracking, vehicle asset control, chain of custody and personnel control. Overall, the Zebra FXR90 is a premium ultra-rugged fixed RFID reader for organizations that need reliable RFID performance in harsh, distributed or hard-to-wire environments. Its strongest value lies in 1,300+ tags-per-second performance, IP65 / IP67 sealing, -40°C to +65°C operation, integrated and external antenna configurations, integrated antenna read range, Wi-Fi 6, Bluetooth 5.3, 5G, GPS, CBRS, flexible power options, GPIO, Gigabit Ethernet, IoT Connector and rugged deployment flexibility.

Datasheet

Product Identifiers
