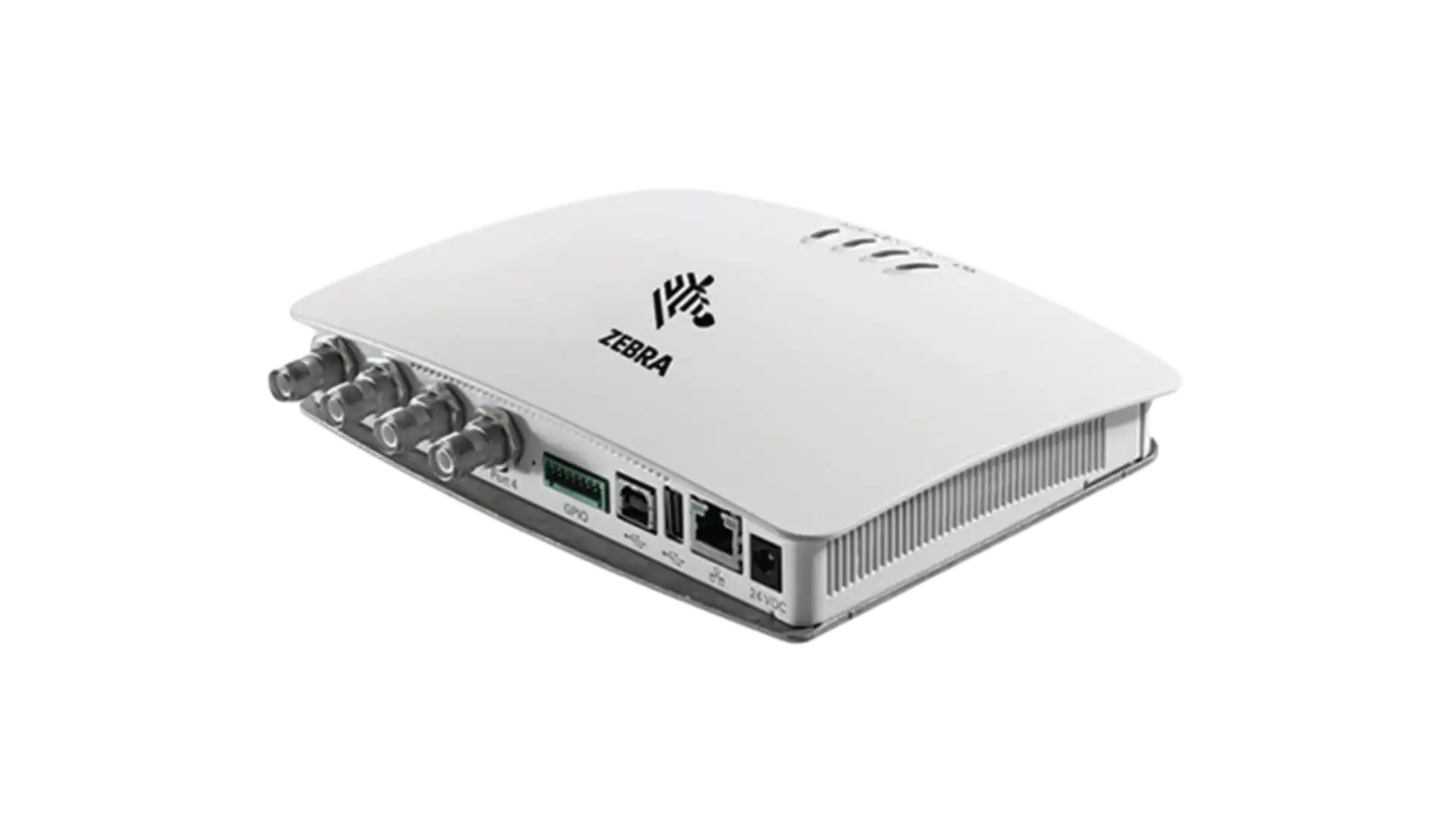

Zebra FX7500 Fixed RFID Reader

The Zebra FX7500 Fixed RFID Reader is an advanced fixed UHF RFID reader designed for business-class environments where companies need reliable RFID performance, easy deployment and flexible integration with enterprise systems. It is built for warehouses, distribution centers, retail operations, manufacturing sites and transportation environments that want to automate RFID-based identification, tracking and inventory visibility. The FX7500 is not a handheld RFID reader, not an RFID sled and not a POS pad reader. It is a fixed infrastructure reader that connects to external RFID antennas and is installed at defined read points, such as portals, stockroom areas, production points, retail zones, transition points or other controlled RFID reading locations. Its purpose is to automate RFID data capture and reduce manual scanning. A key strength of the FX7500 is its high-performance radio technology. The reader is designed for faster, more accurate read rates and consistent RFID performance. The source highlights higher sensitivity, improved interference rejection and echo cancellation, supporting best-in-class dense reader mode performance and read rates up to 1,200+ tags per second in FM0 mode. The FX7500 supports EPCglobal UHF Class 1 Gen2 and ISO 18000-6C air protocols. Frequency support includes global reader operation across 902–928 MHz and 865–868 MHz, as well as a US-only version for 902–928 MHz. Maximum receive sensitivity is listed at -82 dBm. Transmit power output is 10 dBm to +31.5 dBm with PoE+, 12–48 V external DC or universal 24 VDC power supply, and +10 dBm to +30.0 dBm with PoE. The reader is available in 2-port and 4-port configurations. The FX7500-2 includes two monostatic antenna ports, while the FX7500-4 includes four monostatic antenna ports, using Reverse Polarity TNC connectors. This allows organizations to deploy the exact number of read points required for the application, without unnecessary antenna overlap or higher infrastructure cost. Deployment is designed to be simple. The supplied bracket allows the reader to be mounted quickly, and integrated Power over Ethernet support means the reader can be installed where needed without requiring a separate nearby power outlet. This is especially useful in large open areas, ceilings, walls or locations where running additional power drops would add cost and complexity. The FX7500 supports PoE, PoE+ and +24 VDC power, with 12–48 VDC operation also supported. This gives flexibility in enterprise installations and helps reduce deployment cost. The reader is also plenum area rated, making it suitable for environmental air handling space installation, such as within walls and ceilings where applicable. The Linux-based network architecture supports integration with RFID and backend applications. The FX7500 can host third-party embedded applications, allowing processing to occur directly on the reader. This can simplify deployment, reduce middleware complexity and make the reader adaptable to multiple application environments. Connectivity includes 10/100 BaseT Ethernet with PoE support, USB client, USB host and optically isolated GPIO with two inputs and three outputs. The built-in USB host port can support selected third-party adapters for Wi-Fi and Bluetooth connectivity, allowing more flexible network and device connection options where required. The FX7500 is designed for centralized and remote management. Once connected to the network, readers can be auto-detected. Predefined configuration files and built-in testing tools help verify that readers are operating correctly. Web-based and remote firmware upgrade capabilities simplify lifecycle management across distributed installations. The reader supports major worldwide RFID standards and interfaces, including FCC and ETSI EN 302 208, LLRP and Reader Management. Network services include DHCP, HTTPS, FTPS, SFTP, SSH, HTTP, FTP, SNMP and NTP. The reader supports IPv4 and IPv6, Transport Layer Security 1.2 and FIPS-140, helping it fit into secure enterprise IT environments. MotionWorks Enterprise RFID Reader Management allows organizations to deploy and manage Zebra passive RFID reader networks from one consolidated application. IoT Connector enables data collection from cloud-capable edge devices through standard IoT protocols without coding. These tools help simplify monitoring, configuration and integration across larger RFID infrastructures. The FX7500 uses a Texas Instruments AM3505 600 MHz processor and runs Linux with 512 MB flash and 256 MB RAM. API support includes host applications using .NET, C and Java EMDK, as well as embedded applications using C and Java SDK. The physical design is compact and practical. The reader measures 7.7 in L x 5.9 in W x 1.7 in D / 19.56 cm L x 14.99 cm W x 4.32 cm D and weighs approximately 0.86 kg. The housing is made from die-cast aluminum, sheet metal and plastic. Visual status indicators include multicolor LEDs for power, activity, status and applications. Mounting options include keyhole mounting and standard VESA 75 mm x 75 mm. The FX7500 is suitable for business-class environments. It operates from -20°C to +55°C and can be stored from -40°C to +70°C. Humidity tolerance is 5% to 95% non-condensing, and shock / vibration support is listed to MIL-STD-810G. Typical industries include warehousing and distribution, retail, manufacturing and transportation. In practice, the FX7500 can be used for RFID portals, inventory visibility, stockroom tracking, production tracking, item-level retail processes, asset movement detection and other fixed read point applications where reliable passive UHF RFID data capture is required. Overall, the Zebra FX7500 is a cost-effective, business-class fixed UHF RFID reader for companies that need dependable RFID performance, simple deployment and flexible enterprise integration. Its strongest value lies in 2- and 4-port configurations, up to 1,200+ tags-per-second performance in FM0 mode, PoE support, Linux-based architecture, third-party application hosting, LLRP support, GPIO, remote management, IoT Connector and MotionWorks Enterprise RFID Reader Management.

Datasheet

Product Identifiers

Have questions about this product, or need additional technical information, configuration details or a quotation? Contact us – our team will be happy to assist you.
