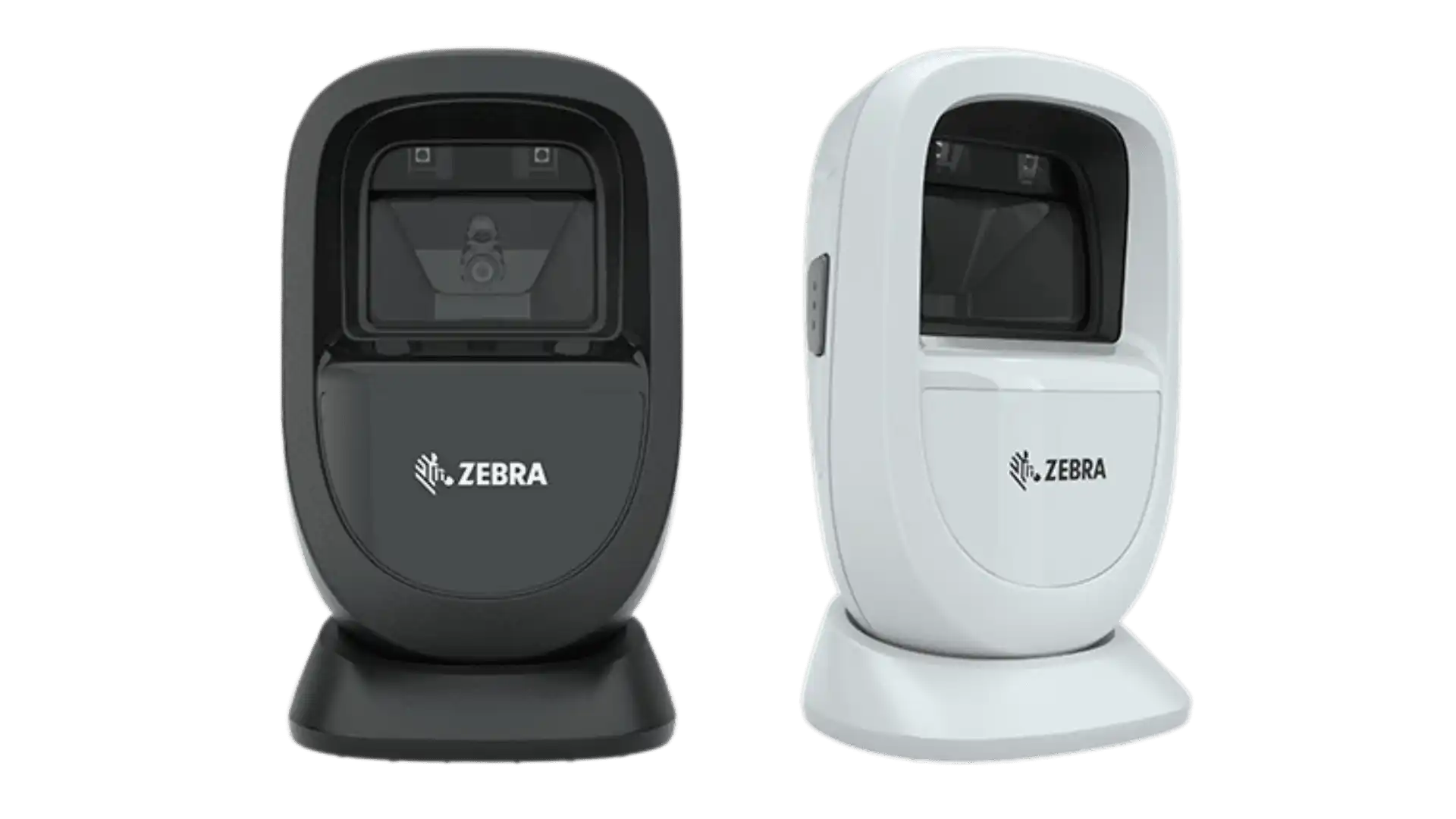

Zebra DS9300 Series Presentation Scanner

The Zebra DS9300 Series is a compact presentation scanner designed for retail, hospitality and transportation environments where counter space is limited, but scanning performance and reliability are still critical. It is positioned as a small-footprint scanner with advanced 1D / 2D capture capabilities, suitable for convenience stores, drug stores, quick service restaurants, boutiques, concession stands, ticketing points and other customer-facing POS locations. The main value of the DS9300 Series is that it fits easily into space-constrained checkout areas. Its near-zero footprint and modern design make it suitable for counters where every centimetre matters. The 45° angled cable connector helps reduce the already small footprint, even when the scanner is tilted forward. This makes the DS9300 Series practical for compact POS stations, small retail counters and self-service or customer-facing applications. The scanner is designed to capture a wide range of barcode types. It can read 1D and 2D barcodes printed on labels or displayed on mobile phone screens. It also supports tiny high-density codes, DotCode and dotted DataMatrix codes through cellophane, OCR, and Digimarc on specific models. This makes it suitable for modern retail workflows involving mobile coupons, loyalty applications, product barcodes, ticketing and identification-related tasks. Scanning performance is supported by an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra PRZM Intelligent Imaging technology. The DS9300 Series is designed to capture difficult barcodes, including poorly printed, damaged, crinkled, faded, truncated and low-contrast codes. The curved exit window helps reduce stray light and reflections from glossy paper or screen-based barcodes, improving read reliability at the point of sale. The DS9300 Series is built for fast presentation scanning. The source lists swipe speed up to 120 inches / 305 cm per second for 13 mil UPC in optimized mode. Its large field of view helps reduce the need to find a narrow “sweet spot,” allowing users to pass items naturally in front of the scanner. This supports faster checkout and a smoother customer experience. The scanner uses intelligent adaptive illumination. The LEDs dynamically adapt to the environment, dimming when not in use and activating when a barcode is present. The recessed, low-visibility LEDs reduce eye annoyance, which is especially useful in customer-facing environments where the scanner is used continuously throughout the day. The DS9300 Series can also support driver’s license data capture and processing. In supported regional configurations, driver’s license parsing can help with age verification, loyalty and credit applications, and return monitoring. The source notes North America limitations for certain driver’s license parsing use cases, so regional availability should be confirmed for local deployments. Document capture is another practical feature. With Intelligent Document Capture, the DS9300 Series can capture clear electronic images of prescriptions, passports, checks and other A6 or smaller documents. The software can automatically correct lighting issues and improve document clarity, reducing the need for a separate document scanner at the POS. The scanner can help streamline loss-prevention workflows. Checkpoint EAS compatibility allows the DS9300 Series to capture barcodes and deactivate anti-theft tags in a single pass, helping remove an extra step from checkout and improving transaction speed. Productivity features further strengthen the series. Multi-Code Data Formatting allows multiple barcodes to be captured with one scan and only the required barcodes to be transmitted in the order expected by the application. Preferred Symbol allows the scanner to capture and output only the desired barcode when multiple codes are nearby, reducing the need for associates to cover unwanted barcodes manually. Feedback is designed to remain visible and audible in real POS environments. The beeper volume, frequency and duration can be adjusted, while bright green good-decode LEDs are visible whether the associate is standing in front of or behind the scanner. The DS9300 Series is designed for everyday retail durability. It is rated IP52 and is built to withstand multiple 1.5 m drops to concrete and 1,000 tumbles in a 0.5 m tumbler. The spill-resistant design includes a concealed beeper hole, elevated circuitry and elevated cable connector, helping the scanner continue operating despite daily bumps, spills and dust. The multi-position base increases practical usability. It provides four positions, from 15° back to 45° forward. The frictionless ratcheting system is designed not to wear out like friction-based competitive mechanisms, allowing the scanner angle to be adjusted repeatedly over the device lifecycle. Deployment is designed to be simple. The DS9300 Series is preconfigured for common applications, supports auto-host detect cables and supports more than 90 international keyboards. Supported host interfaces include USB, RS232, Keyboard Wedge and TGCS / IBM 46XX over RS485. The scanner is also backward compatible with DS9208 cables and power supplies, helping reduce upgrade cost for customers already using that platform. Mounting options extend the possible use cases. A multi-mount bracket can keep the scanner in place on a table or wall while still allowing tilt adjustment and removal for handheld use. A locking-mount bracket is suited to customer-facing or self-checkout applications where the scanner should remain fixed. The DS9300 Series is part of Zebra’s DataCapture DNA ecosystem. 123Scan can create a single barcode to stage or update scanners. Scanner SDK supports application development. ScanSpeed Analytics helps identify and correct performance issues before they affect productivity. Scanner Management Service and Windows Management Instrumentation support remote scanner management, reducing the need for onsite maintenance. The DS9300 Series is suitable for retail POS, mobile coupons, eLoyalty, driver’s license parsing for selected regions, cigarette and liquor tax verification, Checkpoint EAS, hospitality POS, concession stands, ticket processing, transportation POS, gate check-in and paper or mobile boarding pass workflows. The source states that the DS9300 Series is warranted for three years from the date of shipment, subject to Zebra’s hardware warranty terms. Recommended services include Zebra OneCare Select and Zebra OneCare Essential. Overall, the Zebra DS9300 Series is a compact, high-performance presentation scanner for businesses that need advanced 1D / 2D scanning in limited counter space. Its strongest value lies in its near-zero footprint, PRZM Intelligent Imaging, fast presentation scanning, broad 1D / 2D / OCR support, optional Digimarc support, intelligent adaptive illumination, document capture, Checkpoint EAS compatibility, durable IP52 design, flexible base and DataCapture DNA management tools.

Datasheet

Product Features

• Scan technology: 1D/2D

Product Identifiers
