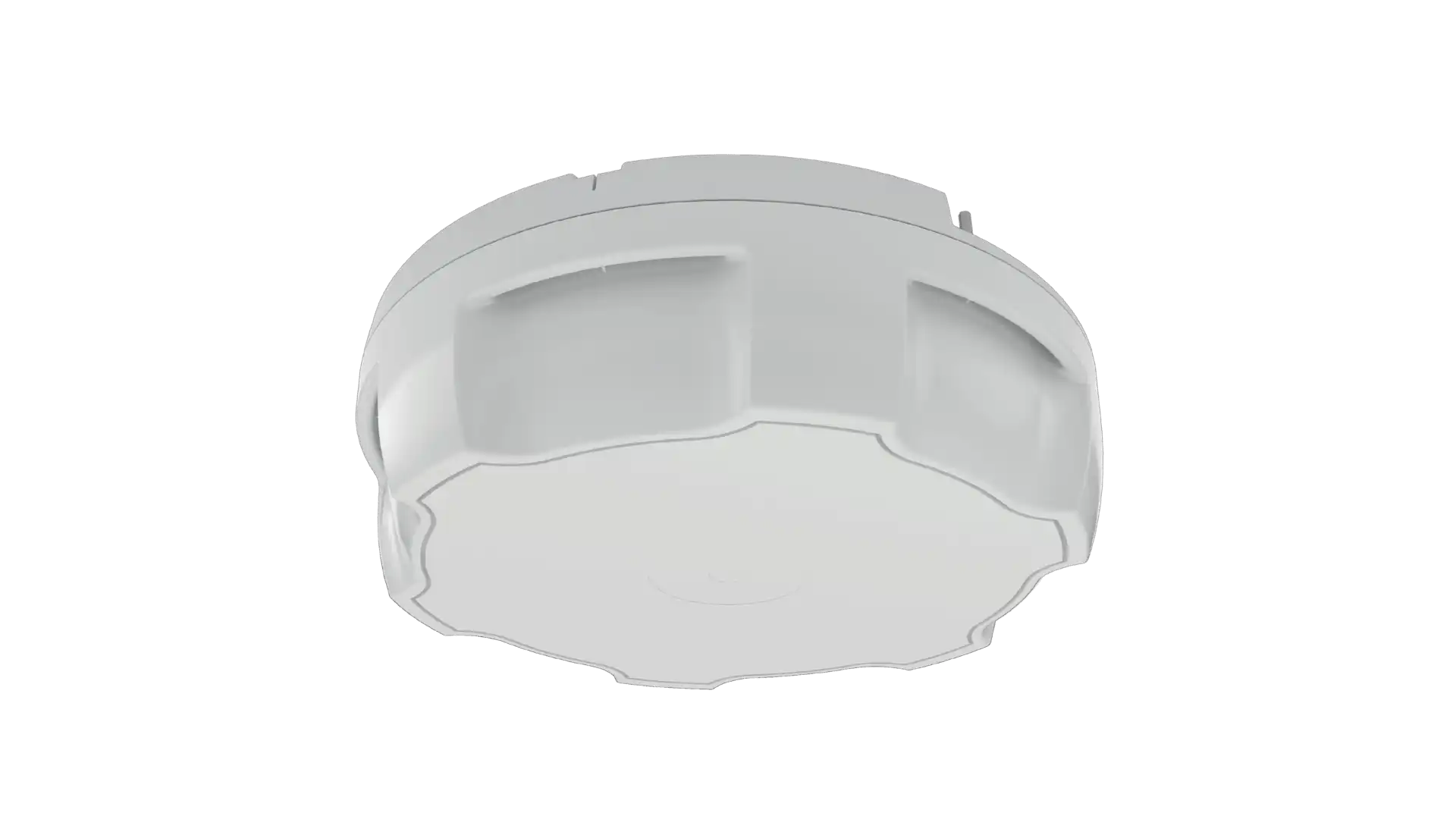

Zebra ATR7000 RTLS Reader

Brand - Zebra

The Zebra ATR7000 RTLS Reader is a fixed UHF RFID reader designed for real-time locationing of RFID-tagged inventory, assets and goods in warehouses, manufacturing facilities, dock doors, entry / exit points and large monitored areas. It is built for organizations that need continuous visibility into where assets are located, how they move and in which direction they are moving. Unlike handheld RFID readers or RFID sleds, the ATR7000 is a fixed infrastructure device. It is installed overhead or in strategic transition areas to monitor tagged assets automatically, reducing the need for manual scanning. Its purpose is not simply to read RFID tags, but to provide real-time location intelligence that can be used by business systems such as Warehouse Management Systems. The ATR7000 uses Zebra’s advanced RFID technology, including parallel multi-transmit and receive architecture, digital beam forming and a wide-angle phased-array antenna. The steerable phase-array antenna electronically steers and processes hundreds of narrow beams simultaneously, helping deliver precise asset location. The source lists typical location accuracy better than 2 ft / 0.6 m, with CLAS software location accuracy of 2 ft / 0.6 m R50 and 4 ft / 1.2 m R95. The wide-angle multi-polarized antenna is a major advantage. It can cover up to twice the area of typical competitive readers, and uses both circular and linear coverage patterns to improve tag visibility across different asset types, tag orientations and facility layouts. This can reduce the number of readers required in an RTLS deployment and lower overall hardware costs. The ATR7000 provides real-time tracking of location, movement and direction of movement. This means systems can detect whether an RFID-tagged item is stationary, moving through a warehouse or entering / leaving a truck at a loading dock. This additional movement direction data can support smarter workflows, better inventory control and more accurate operational decisions. Throughput is another key benefit. The source states that the ATR7000 can deliver up to 10 times the throughput of competitive readers, helping track large volumes of assets in real time. This makes it suitable for demanding environments where many tagged items may be moving simultaneously. The ATR7000 supports EPCglobal UHF RFID Class 1 Gen2 / ISO 18000-63. Frequency ranges include 902–928 MHz for the US and Canada, and 865–868 MHz for EMEA and India. Maximum receive sensitivity is listed at -88 dBm. The beam scanning range is azimuth 0–360° and elevation 0–60°. Integration can be handled through Zebra RFID API, allowing RFID applications to use real-time tag location data from the ATR7000. This enables dynamic workflows that can reduce manual processes and improve operational efficiency. For location analytics and system management, the ATR7000 can be used with Zebra CLAS — Configuration and Location Analytics Software. CLAS includes RTLS configuration and management functions, as well as a Location Analytics engine. The software collects tag bearing data from ATR7000 readers, triangulates tag data from one or more readers, calculates real-time asset locations and streams tag ID and location data to business systems such as WMS platforms through a Kafka interface. With this location intelligence, a WMS can create more dynamic workflows. For example, workers can be assigned tasks based on the actual location of assets, or multiple picking and put-away tasks can be combined into a more efficient route. The source positions this as a way to reduce development effort, improve return on investment and increase worker productivity. The ATR7000 can also be managed as part of a broader Zebra RFID infrastructure. MotionWorks Enterprise RFID Reader Management allows deployment and management of Zebra passive RFID reader networks from a consolidated application. IoT Connector enables data gathering from cloud-capable edge devices using standard protocols without coding. The integrated management interface can automatically discover and configure ATR7000 readers connected to the local network. Mounting and power options are designed for practical deployment. The reader supports direct pole mounting and standard VESA 75 or VESA 100 mounting. Power can be supplied through a +24 VDC power supply or through 802.3at Power over Ethernet Plus, reducing the need for separate power outlets in some installations. The ATR7000 measures 19.0 in / 482.6 mm in diameter and 6.34 in / 161 mm in height. It weighs 11.1 lb / 5.03 kg and includes a multi-color LED for power and status indication. Network connectivity is 10/100 BaseT Ethernet through RJ45. General purpose I/O includes two inputs and three opto-isolated outputs. The device is designed for industrial and warehouse environments. It operates from -20°C to +55°C and can be stored from -40°C to +70°C. Humidity tolerance is 5% to 95% non-condensing. Sealing is IEC IP51. ESD protection is listed at ±15 kV air discharge and ±8 kV direct / indirect discharge. Vibration support is listed to MIL-STD 810F. Management and interface features include Linux operating system, .NET, C and Java EMDK host application support, LLRP v1.0.1 host interface protocol, RM1.01 management protocol, remote and web-based firmware upgrades, and network services including DHCP, HTTPS, FTPS, SFTP, SCP, SSH, HTTP, FTP, SNMP and NTP. Security includes Transport Layer Security 1.2 and FIPS 140-2 Level 1. The ATR7000 is especially relevant for warehouses and manufacturing sites. Typical applications include area monitoring, overhead portals, dock doors, entry and exit areas, large area monitoring, item location, transition and direction detection, industrial automation and asset tracking. Overall, the Zebra ATR7000 RTLS Reader is a fixed RFID locationing reader for organizations that need real-time visibility into tagged assets across warehouse and manufacturing environments. Its strongest value lies in phased-array beam steering, wide-angle multi-polarized coverage, passive UHF RFID RTLS, real-time movement and direction tracking, CLAS location analytics, WMS integration, PoE+ support, flexible mounting and the ability to reduce manual scanning while improving operational visibility.

Datasheet

Product Identifiers
