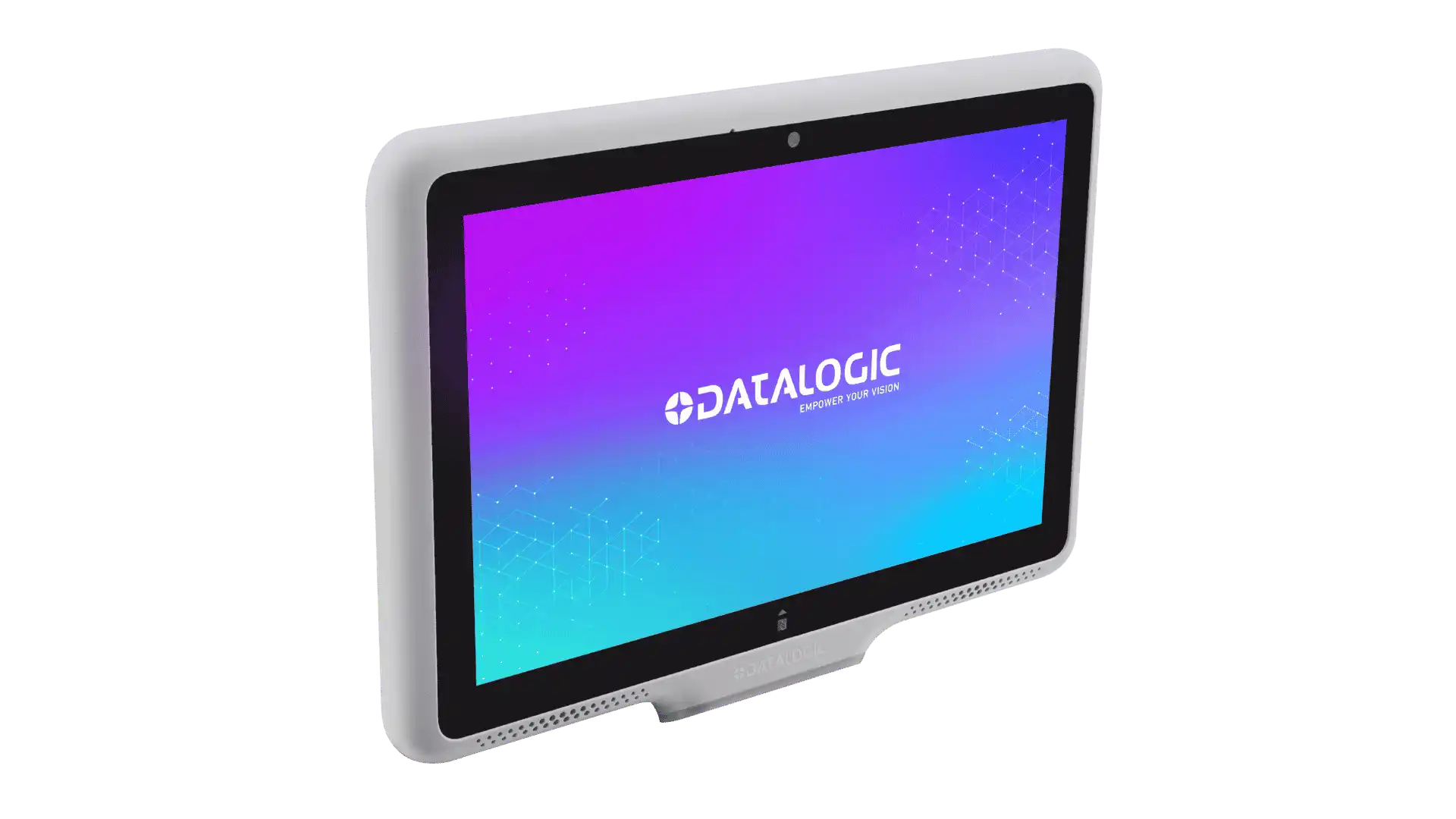

Datalogic Smart Portal Self-Service Gateway

Brand - Datalogic

The Datalogic Smart Portal is an intelligent self-service gateway designed for retail, hospitality and healthcare environments. It combines a large touch display, integrated 1D / 2D barcode scanning, NFC identification, Wi-Fi 6E connectivity, audio interaction and flexible mounting in a compact fixed device. The Smart Portal is not a handheld scanner and not a mobile computer. Its main role is to provide a fixed self-service point where users can scan, identify themselves, access information, request assistance, check prices, compare products, check in or interact with digital services. A key strength of the Smart Portal is flexible deployment. VESA 75 mounting allows the device to be installed on walls, furniture or other suitable surfaces without major changes to the environment. Power options include PoE+ / Type 2 according to IEEE 802.3at or a standard DC power supply, making installation easier in different retail, hospitality and healthcare locations. The device features an 8.6-inch color HD display with 1340 x 800 resolution, 16:10 format and 450-nit brightness. The touch screen is a 5-point capacitive multi-touch panel with optical bonding. It supports gloves and stylus operation, water-drop rejection and anti-fingerprint surface finishing. The Smart Portal is designed to create a welcoming and accessible user experience. Status LEDs, a light guide LED around the scan engine, front audio, intuitive graphics and acoustic feedback help users understand each interaction. Immediate visual and sound feedback can improve confidence in self-service environments. Barcode reading is handled by the Datalogic Halogen DE2121-DL 1D / 2D scan engine. The device includes Datalogic Green Spot technology for good-read feedback, helping users confirm successful scans quickly and clearly. In retail, the Smart Portal can support price checking, product availability, product details, loyalty and rewards program integration, product comparison, guided selling, digital signage, assisted shopping, merchandising, full-screen how-to videos and product demonstrations. It can also be used as a call-for-assistance point where customers can request help from staff. In hospitality, the Smart Portal can support hotel guest portal functions, guest check-in, electronic concierge workflows and scheduling. It can help reduce manual reception workload and provide faster access to services. In healthcare, the Smart Portal can support patient check-in, prescription tracking and patient care-related self-service workflows. Its fixed self-service format can reduce staff workload and help create a more efficient reception or service process. NFC support includes tag types 2 / 3 / 4 / 5, ISO14443-4 A/B, ISO15693, Mifare and Felica. This makes the device suitable for identification and access workflows depending on the deployed application and system integration. Wireless connectivity includes Wi-Fi 6E with IEEE 802.11 a/b/g/n/ac/ax, 2x2 MIMO and WPA3 Enterprise 192-bit mode. Bluetooth 5.3 supports Classic Bluetooth and BLE. Wired connectivity is also strong, with Gigabit-compatible Ethernet through RJ45. The device includes USB connectivity for accessories and maintenance. Interfaces include one USB-C host port, one USB-A host port, both USB 2.0, and one USB-C OTG port. This supports integration with selected peripherals or service workflows. The Smart Portal includes a 5-megapixel front camera for badge verification and user-facing identification workflows. It also includes a Time-of-Flight sensor, which can support presence, interaction or proximity-aware functions depending on the software implementation. Audio features include two microphones and two speakers rated at 1.3 W / 1.5 W short term and 90 dBA. Headset support is available through Bluetooth. These features allow users to reach live or virtual assistance, supporting service, reception and help-point workflows. The device is powered by the Qualcomm QCx4490 octa-core 2.4 GHz platform, with 6 GB RAM and 128 GB flash storage. A Micro SD card slot supports expansion up to 2 TB. The operating system is Android 15 and is upgradeable to Android 19, supporting long-term deployment planning. The Smart Portal is designed for controlled indoor environments. Operating temperature is 0 to 40°C, while storage and transport temperature is -30 to 70°C. Humidity tolerance is 5% to 95% non-condensing across the operating temperature range. ESD protection is 15 kV air discharge and 8 kV contact discharge. The device is resistant to general-purpose chemical cleansers, including 70% isopropyl alcohol, ammonia-based glass cleaners, 0.8% sodium hypochlorite solution, 70% ethyl alcohol and 3% hydrogen peroxide. This is useful in public-facing environments where regular cleaning is required. The Smart Portal measures 227 x 164.5 x 32 mm and weighs 638 g. Its compact fixed form factor makes it suitable for front-of-store, reception, service desk, hospital, hotel and public-facing information points. Software support is provided by the Datalogic Mobility Suite. Protection tools include Shield for Android security updates, Launcher for kiosk mode, Enterprise Browser for secure browsing and Integrity Kit to safeguard hardware interfaces. These are especially important for public self-service terminals where device misuse must be prevented. Configuration tools include Scan2Deploy, OEMConfig, Android Enterprise QR Generator and Wi-Fi QR Generator. Development tools include SDKs for Java, Kotlin, Xamarin, .NET, MAUI and JavaScript, Visual Formatter and Wedge for configurable barcode scanning input methods. Optimization and productivity tools include Logger, Wi-Fi Guard, Snap OCR, SoftSpot and QuickBoard. Snap OCR can digitize text and streamline data entry or label parsing, while QuickBoard provides a customizable on-screen enterprise keyboard. The Smart Portal supports common enterprise provisioning methods such as Android Zero-Touch, Android Enterprise QR Code, NFC Bump, EMM Token and DPC Identifier enrollment. It is compatible with major UEM / EMM solutions including SOTI MobiControl, VMware Workspace ONE, Microsoft Intune, 42Gears SureMDM, Ivanti Neurons and OEMConfig-compliant platforms. Terminal emulator and PTT compatibility includes Ivanti Velocity, StayLinked SmartTE and Zello PTT. The source also positions the Smart Portal as AI-ready, with potential insights to detect risks and optimize operations. This should be communicated carefully as an AI-ready / insight-oriented capability rather than as a fully specified standalone AI function, unless the exact software module and use case are defined. Sustainability is part of the positioning. The device and accessories are described as using recycled materials and recyclable packaging, with a design intended to reduce waste and energy consumption. Overall, the Datalogic Smart Portal is a flexible Android-based self-service device for retailers, hotels and healthcare providers that want to reduce queues, speed up service and provide customers, guests or patients with direct access to information and assistance. Its strongest value lies in the 8.6-inch display, Halogen DE2121-DL 1D / 2D scan engine, Green Spot feedback, NFC identification, Wi-Fi 6E, Bluetooth 5.3, PoE or DC power, VESA mounting, front camera, microphones and speakers, chemical resistance, Android 19 lifecycle and Datalogic Mobility Suite.

Datasheet

Product Identifiers

Have questions about this product, or need additional technical information, configuration details or a quotation? Contact us – our team will be happy to assist you.
