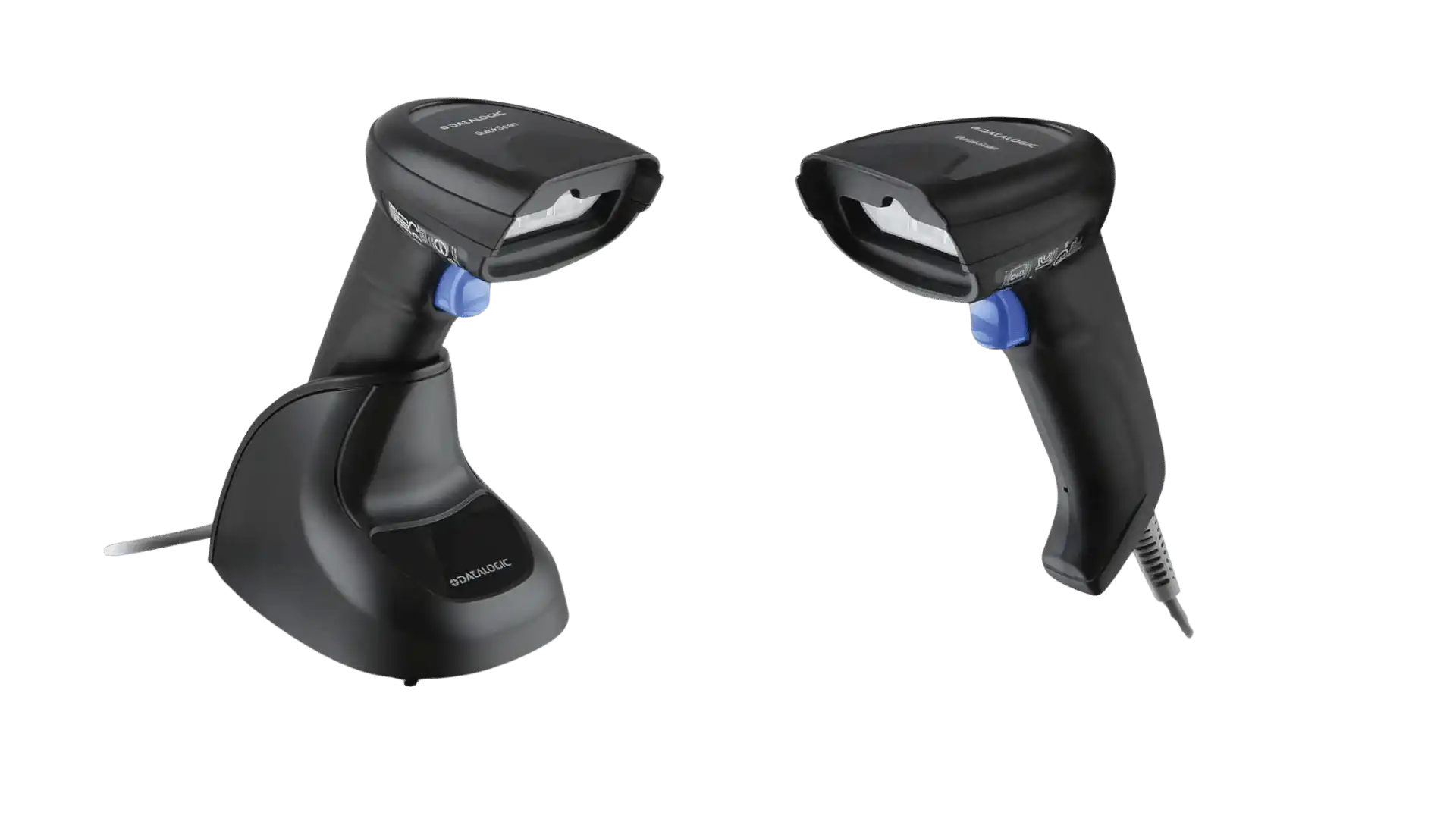

Datalogic QuickScan I 2200 Series Corded 1D Linear Imager

Brand - Datalogic

The Datalogic QuickScan I 2200 Series is an entry-level corded handheld linear imager designed for reliable 1D barcode reading in retail, commercial services, hospitality and government-related applications. It is a practical choice for businesses that still work mainly with linear barcodes and need a lightweight, responsive and affordable scanner for daily use. The QuickScan QD2200 is focused on 1D barcode reading. It is not a 2D area imager. Its strongest fit is retail POS checkout, loyalty card scanning, electronic coupons, postal and banking workflows, public administration, utility bills, document processing, laboratories, ticketing, lottery and gaming applications. Although 2D barcodes are increasingly common, 1D barcodes remain widely used in POS checkout and many document-based workflows. Long barcodes are especially common on utility bills, packaging and manufacturing labels. These can be difficult for some full area imagers because of narrower field of view and shorter depth of field. The QD2200 is designed specifically to handle these long 1D barcodes efficiently. A key strength of the QuickScan I 2200 Series is its extra-wide scan angle and extra-long scan line. The sharp, highly visible scan line gives the operator clear control and makes it easier to capture long or wide 1D barcodes. This is useful at the checkout, in document processing and in applications where the code is wider than a typical retail label. The scanner provides extended reading range and depth of field for an entry-level 1D imager. It can read 1D codes from close range to longer distances, making it flexible for counter, desk and light operational use. The QD2200 also reads electronic coupons from smartphone screens. This makes it useful for modern POS workflows where customers present loyalty identifiers, coupons or references on mobile devices. The source also highlights that the scanner can read through plexiglass barriers, which can be useful in checkout or service-counter environments. Good-read feedback is supported by Datalogic Green Spot technology, which projects confirmation directly on the code. The scanner also includes an adjustable-tone beeper and Good Read LED, helping operators confirm successful scans quickly and reliably. The QuickScan QD2200 is lightweight and balanced. It measures 15.6 x 6.7 x 10.7 cm and weighs 123 g, making it comfortable for daily operation. Its responsive trigger and ergonomic design support repeated scanning at the POS or service desk. The scanner uses tailored linear imaging technology with a CCD solid-state imager. It has a 56° +/- 2° field of view, red LED illumination at 617 nm, and a maximum read rate of 1,000,000 pixels per second / 400 reads per second. Motion tolerance is 40 IPS, minimum print contrast is 15%, and maximum resolution is 3 mils. Typical reading ranges include Code 39 4 mils from 2.5 to 22.0 cm, Code 39 5 mils from 2.0 to 30.0 cm, Code 39 7.5 mils from 1.0 to 45.0 cm, Code 39 10 mils from 1.0 to 60.0 cm, Code 39 20 mils from 3.0 to 103.0 cm and EAN / UPCA 13 mils from 1.0 to 68.0 cm. Actual reading performance depends on symbol length, print quality, contrast, ambient light and scan angle. The QuickScan I 2200 Series auto-discriminates all standard 1D codes, including GS1 DataBar linear codes. This makes it suitable for standard POS, service and document-processing barcode applications where 1D symbologies are used. Connectivity is simple and modern. The QD2200 uses a USB interface, and a cable to USB-C connector is available. This makes it easy to deploy with current POS terminals, PCs and service-counter systems. The scanner is designed for everyday reliability in entry-level applications. It withstands repeated drops from 1.5 m / 5.0 ft onto concrete, supports 3 million trigger hits, has 16 kV ESD air discharge protection and IP42 sealing. Operating temperature is 0 to 50°C, with storage and transport temperature from -40 to 70°C. Configuration and deployment are supported by Datalogic Aladdin 3.0. The configurator provides a modern GUI, search functions and an online version that can generate programming barcodes to be scanned directly from a smartphone. OPOS and JavaPOS utilities are also available, and Remote Host Download can help lower service costs and improve operations. Overall, the Datalogic QuickScan I 2200 Series is a strong entry-level corded 1D scanner for organizations that need reliable linear barcode reading with better long-code handling than basic scanners. Its strongest value lies in the extra-wide scan angle, extra-long visible scan line, extended depth of field, Green Spot feedback, USB / USB-C connectivity, lightweight body, plexiglass and smartphone coupon reading capability, and 5-year factory warranty.

Datasheet

Product Identifiers

Have questions about this product, or need additional technical information, configuration details or a quotation? Contact us – our team will be happy to assist you.
